Why do we use strain gauges to measure force?

What is a strain gauge rosette used for?

  • Strain Gauge Rosettes Some strain gauges called strain gauge rosettes use additional sensors to provide strain measurements in multiple directions. The rosettes are used to determine the complete strain state of an object at the surface. The complete strain state is composed of normal, shear, and principal strains.

What is the difference between strain gauge and load cell?

  • Conclusion: 1 A strain gauge is a sensing device used for measuring strain experienced by an object. ... 2 A load cell is a type of transducer that measures the mechanical load on an object by converting it to readable electronic signals. 3 The strain gauge is an application of the Wheatstone bridge circuit. ... More items...

What is Mercury in rubber strain gauge used for?

  • In biological measurements, especially blood flow and tissue swelling, a variant called mercury-in-rubber strain gauge is used. This kind of strain gauge consists of a small amount of liquid mercury enclosed in a small rubber tube, which is applied around e.g., a toe or leg.

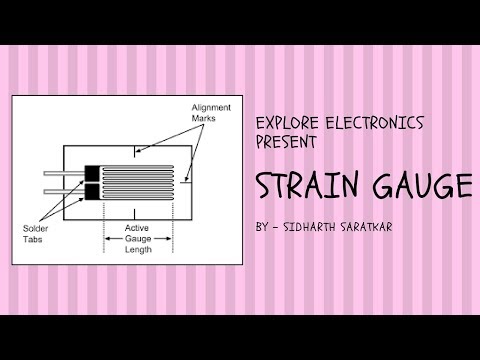

image-Why do we use strain gauges to measure force?
image-Why do we use strain gauges to measure force?
