What is torque of a motor?

Electric motor output power and torque vs. rotation speed.
Torque is a rotating force produced by a motor's crankshaft. The more torque the motor produces, the greater is its ability to perform work. Since torque is a vector acting in a direction it is commonly quantified by the units Nm or pound-feet.

What determines motor torque?

How to calculate torque of motor: Torque is nothing but a momentary force developed at the time of force is applied to the motor. The unit of torque is N.m (Newton-meter). In other words, Torque T(N.m) is equal to the ratio between the electrical power P(W) in watts to the acceleration.

What is meant by torque in dc motor?

Torque or moment or moment of force is the tendency of a force to rotate or move an object about an axis. A force is a push or pull, likewise, torque is a twist to an object. Mathematically, torque, T = F × r.Feb 9, 2020

What is torque vs speed?

Torque is the rotational equivalence of linear force. Speed measures the distance covered in unit time. The relation between torque and speed are inversely proportional to each other. The torque of a rotating object can be mathematically written as the ratio of power and angular velocity.

What is torque and RPM?

RPM- Stands for rotations/revolutions per minute. This is a measurement of how fast your engine is rotating. Torque- Torque is a measurement of rotational force. ... The more torque a car has the faster it accelerates, the more horse power a car has, the higher its top speed will be.Jun 9, 2021

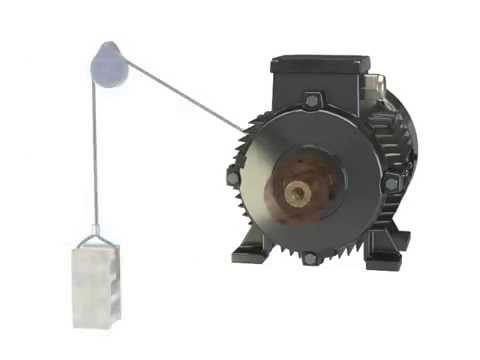

image-What is torque of a motor?
image-What is torque of a motor?

How do you check motor torque?

A relatively simple method to estimate electrical motor torque is to measure its electrical power input, the voltage and the current in the power line driving the motor. For most motors, torque is directly proportional to the current and can be derived from it by knowing shaft speed and motor efficiency.


How is torque calculated?

The Meaning of Torque

Torque (also called moment — mostly by engineers) is calculated by multiplying force and distance. ... This is a vector with a magnitude of the distance from where the force is applied to the axis of rotation. It points from the axis of rotation toward the point where the force is applied.
Oct 18, 2018


Does torque increase with speed?

Torque is inversely proportional to speed. Thus, when speed increases, torque will decrease.


How is torque developed in dc motor?

When a DC machine is loaded either as a motor or as a generator, the rotor conductors carry current. These conductors lie in the magnetic field of the air gap. Thus, each conductor experiences a force. ... Hence, a torque is produced around the circumference of the rotor, and the rotor starts rotating.


What is torque in motor Quora?

Torque: A measure of how much a force acting on an object causes that object to rotate. The tendency of a force to rotate an object about an axis, fulcrum, or pivot. When energized, the rotor of a motor produces a twisting force.


Is torque a power?

Back to Berra's theorem, torque is the capacity to do work, while power is how quickly some strenuous task can be accomplished. In other words, power is the rate of completing work (or applying torque) in a given amount of time. Mathematically, horsepower equals torque multiplied by rpm.Apr 15, 2016


Which is better torque or horsepower?

Torque, simply, is the ability of a vehicle to perform work — specifically, the twisting force applied by the crankshaft. Horsepower is how rapidly the vehicle can perform that work. ... Because there is generally a limit on how fast you can spin an engine, having higher torque allows for greater horsepower at lower rpms.Apr 18, 2016


How to determine proper motor torque?

  • Divide the motor speed by the required speed and round down to get a starting gear ratio. Then divide the required torque by the gear ratio to find the newly required torque. This will help you narrow the choices down to a few select motors.


How do I measure motor torque?

  • Method 2 of 3: Figuring out the Torque for Angled Forces Start with the distance of the radial vector. The radial vector is the line that extends from the axis or point of rotation. Work out the amount of force being applied. In most torque problems, this value will also be given to you. Measure the angle made by the force vector and the radial vector. ... Use your calculator to find the sine of the angle θ. ... More items...


How is torque produced inside a motor?

  • Torque and speed play a vital role in the operation of the motor. Generally, torque is produced by the flux which gets interacted with the armature flux. The interaction of these two fluxes develops a unidirectional torque that enables the motor to rotate.


Which type of motor has motor torque?

  • One feature of stepper motors that differentiates them from other motor types - particularly servo motors - is that they exhibit holding torque. This means that when the windings are energized but the rotor is stationary, the motor can hold the load in place.
