What is the range of near field?

The near-field is measured along a line parallel to the AUT at a distance d = 10λ from the source. The position along the observation line is denoted as z and is normalized to the wavelength.Oct 17, 2018

What is the difference between near field and far-field?

The key difference between near field and far field is that near field is a region that is close to an antenna or a scattering object whereas far field is a region that is at a distance from an antenna or a scattering object.Aug 5, 2021

What is the major drawback of the far-field measurement?

For certain antennas it is even possible to calculate the far-field from single cut near-field measurements. These methods have the drawback that the far-field is only approximated.

What is near field and far-field in optics?

An oscillating electric dipole (e.g. an antenna or an excited atom or ion) emits electromagnetic radiation. Here, the near field has an extension less than one wavelengths. The far field occurs for distances from the dipole which are much larger than the wavelength. ... This also applies to radiation from antennae.

What is the formula for near-field?

For such an antenna, the near field is the region within a radius r ≪ λ, while the far-field is the region for which r ≫ 2 λ. The transition zone is the region between r = λ and r = 2 λ .

image-What is the range of near field?
image-What is the range of near field?

How do you calculate far-field distance?

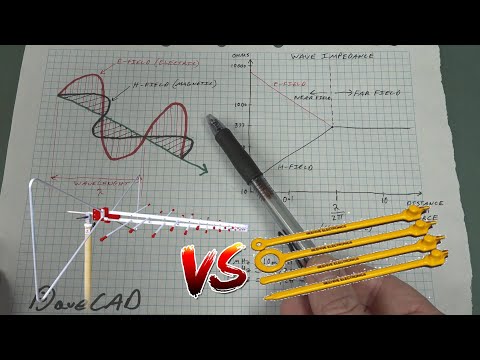

Antenna near field distance equation

As we know that space around an antenna is subdivided into four regions viz. reactive near field ( up to λ), reactive radiating near field ( up to 3*λ) , radiating (fresnel) near field (up to 2*D2 /λ) and radiating far field ( >=2*D2 /λ).


What is near-field diffraction?

In optics, the Fresnel diffraction equation for near-field diffraction is an approximation of the Kirchhoff–Fresnel diffraction that can be applied to the propagation of waves in the near field. ... In contrast the diffraction pattern in the far field region is given by the Fraunhofer diffraction equation.


What is the field zone far from the antenna is called?

The field, which is far from the antenna, is called as far-field. It is also called as radiation field, as the radiation effect is high in this area. Many of the antenna parameters along with the antenna directivity and the radiation pattern of the antenna are considered in this region only.


What is near-field coupling?

Typically, near-field is defined as the field around the antenna up to one wavelength (λ) away (approximately up to 35 centimeters). ... The communications between an RFID tag and an RFID reader (via the antenna) occurs using a process known as electromagnetic coupling.Nov 12, 2014


What wireless applications use the near field wave?

The near field has also proved useful in communications. This mode is used for applications such as radio-frequency identification (RFID) and near-field communications (NFC). RFID is the electronic equivalent of bar coding.Jun 8, 2012


What are the advantages of far-field antenna measurement?

For certain applications, far-field antenna measurements are the preferred technique for determining the amplitude and/or phase characteristics of an AUT. Low gain antennas operating below 1 GHz, and where partial radiation characteristics are required, are candidates for far-field measurements.


What does an antenna do in a circuit?

Antennas have two complementary functions: converting electromagnetic waves into voltage and current used by a circuit, and converting voltage and current into electromagnetic waves which are transmitted into space.May 3, 2007


What is near-field imaging?

Near-field imaging occurs when a sub-micron optical probe is positioned a very short distance from the sample and light is transmitted through a small aperture at the tip of this probe. ... Within the near-field region evanescent light is not diffraction limited and nanometer spatial resolution is possible.


What is far-field imaging?

The far-field light propagates through space in an unconfined manner and is the "normal" light utilized in conventional microscopy. The near-field (or evanescent) light consists of a nonpropagating field that exists near the surface of an object at distances less than a single wavelength of light.Sep 11, 2018


What is the meaning of near and far-field distances when dealing with placing an appropriate lens from the laser?

The near field is understood to be the region around the beam waist (focus). The far field concerns the profile far from the waist, i.e., in a distance from the focus which is large compared with the effective Rayleigh length.


What is near-field data?

  • The near-field data, measured at high SNR, is the basis for predicting the direct sound at larger distances. Application Note AN 38 describes extrapolation of the far field response from multiple near field measurements at vented-box loudspeaker system.


What is the significance of near field measurement?

  • Near field measurement. At this position, the direct sound is much higher than the diffuse sound which is reflected from boundaries and ambient noise corrupting the measurement. This gives a high signal-to-noise ratio which is important for measurements of the fundamental response at low amplitudes and for nonlinear distortion measurements.


What is the near-field measurement process of the AUT?

  • In the near-field measurement process the radiated field distribution of the AUT is measured in the radiating near field in two polarizations. The near-field transformation algorithm relates the measured field values to the amplitudes of the equivalent sources, which are then determined in an inverse process.


How to determine the far field of an antenna from near field?

  • The fields consist of the same field modes and so it is possible to determine the far field of an antenna from a near-field measurement. In order to minimize mutual coupling of AUT and field probe, near-field measurements take place in the radiating near field.
