What is the function of horn in ultrasonic welding?

How much does ultrasonic welding cost?

Ultrasonic welders cost anywhere from $18,000 to $45,000, depending on power capacity and bells and whistles, such as statistical process control packages. A basic 20-kilohertz, 2.5- to 3.5-kilowatt ultrasonic metal welding system can be acquired for around $30,000.Aug 1, 2003

What is the disadvantage of ultrasonic welding How can we avoid that?

A limitation of ultrasonic welding is that with current technology, large joints cannot be welded in a single operation. In addition, specifically designed joint details are required. Ultrasonic vibrations can also damage electrical components, although the use of higher frequency equipment can reduce this damage.

What materials can be ultrasonic welded?

For example, ABS, acrylic, polycarbonate and PVC are amorphous polymers with little or no crystalline structure. These plastics are well suited to ultrasonic welding. Ultrasonic welding of two parts made from the same plastic material will usually obtain the best result.

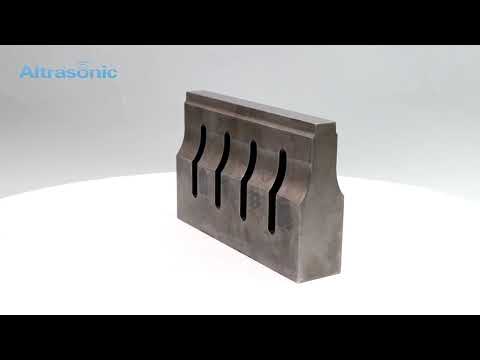

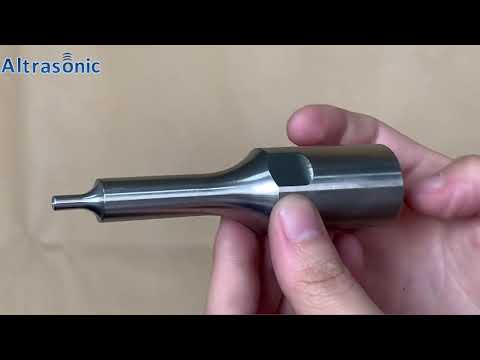

What are ultrasonic horns made of?

Commonly, the horns are made from titanium alloys, such as Ti6Al4V, stainless steel, such as 440C, and, sometimes, aluminum alloys or powdered metals. The most common and simple to make transitional section shapes are conical and catenoidal.

image-What is the function of horn in ultrasonic welding?
image-What is the function of horn in ultrasonic welding?
Related

What is a welding horn?

A welding horn, also known as a sonotrode, is an acoustical tool that transfers the mechanical vibrations to the workpiece, and is custom-made to suit the requirements of the application.

Related

What is the difference between ultrasonic welding and vibration welding?

The vibration welding process vibrates one component relative to another in a linear side-to-side motion. ... The friction between the two objects generates the heat used for welding. Conversely, the ultrasonic welding process vibrates one component perpendicularly to another much like a jackhammer on pavement.Dec 26, 2017

Related

How does vibration welding work?

In vibration welding, two plastic parts are in frictional contact with each other with a certain frequency, amplitude and pressure. As a result of the friction between both parts heat is generated which causes the polymer to melt at the interface.

Related

What is ultrasonic metal welding?

Ultrasonic metal welding is a solid-state bonding process in which ultrasonic vibrations create friction-like motion between two surfaces, causing deformation and shearing of asperities to bring metal-to-metal contact and bonding.

Related

Is ultrasonic welding safe?

In addition to being a very reliable process, ultrasonic welding is efficient and safe. In many cases the adhesives that other forms of plastic bonding require are hazardous, and this adds costs and regulations to your workflow.Dec 11, 2017

Related

What is the minimum frequency used in ultrasonic welding?

What is the minimum frequency used in ultrasonic welding? Explanation: The process of ultrasonic welding is mainly used for the joining of similar metals or dissimilar metals using vibration energy, by way of high frequency. The minimum frequency needed for this purpose is 20,000 Hz.

Related

How do you undo a Sonic Weld?

I would cut the parts apart with a very sharp serrated knife, then use a cement made of solvent and the same resin as the tail light to glue it together again.Feb 13, 2008

Related

Which type of weld is not done by ultrasonic welding?

Ultrasonics would not be used in welding the chassis of an automobile or in welding pieces of a bicycle together, due to the power levels required. Ultrasonic welding of thermoplastics causes local melting of the plastic due to absorption of vibrational energy along the joint to be welded.

Related

Can you melt metal with sound?

Welding usually requires an open flame or torch to achieve the high temperatures necessary to melt the metal surfaces together. ... The technique, ultrasonic welding, used high-frequency sound waves and pressure to bond metals together and required less energy than conventional welding.Mar 22, 2011

Related

What does ultrasonic waves carry more?

Ultrasound, like any wave, carries energy that can be absorbed by the medium carrying it, producing effects that vary with intensity. ... The speed of the tip may exceed the speed of sound in tissue, thus creating shock waves and cavitation, rather than a smooth simple harmonic oscillator–type wave.

Related

Why to use an ultrasonic welder?

  • Ultrasonic welding is a widely recognized and accepted process for joining thermoplastic materials. It offers many advantages, including process reliability and repeatability, lower energy usage than other joining techniques, material savings (because there is no need for consumables, such as glue or mechanical fasteners), and labor savings .

Related

What is ultrasonic metal welding?

  • Ultrasonic metal welding is a process where metals to be joined are placed in position and a tool is placed on them. Then the tool is vibrated at ultrasonic frequency which makes a solid weld and combines the metals.

Related

What is ultrasonic soldering?

  • (September 2014) Ultrasonic soldering is a flux-less soldering process that uses ultrasonic energy, without the need for chemicals to solder materials, such as glass, ceramics, and composites, hard to solder metals and other sensitive components which cannot be soldered using conventional means.
