What is the diameter of fiber optic cable?

There are three common core sizes: 9/125, 50/125, and 62.5/125. Each of those numbers stands for a measurement, and that measurement is in microns.

What is fiber size?

Fiber size Fiber size, often referred to as fineness, is one of the most important properties of fibers. It is usually specified in terms of diameter or linear density. The size of natural fibers is often given as a diameter in micrometer units. It reflects the average width along the fiber's length.

What are the 2 types of fiber optic cable?

There are two primary types of fibre – multimode and singlemode. Multimode fibre can carry multiple light rays (modes) at the same time by having varying optical properties at the core; essentially light travelling the shortest path (down the middle) travels the slowest.

What is the difference between 50 micron and 62.5 fiber?

Both 50 micron and 62.5 micron fiber optic cables use an LED or laser light source. ... The main difference between the two is that 50 micron fiber can support 3 times the bandwidth of 62.5 micron fiber. 50 micron fiber also supports longer cable runs than 62.5 micron cable.

How do I know my fiber size?

The size of the optical fiber is commonly referred to by the outer diameter of its core, cladding and coating. Example: 50/125/250 indicates a fiber with a core of 50 microns, cladding of 125 microns, and a coating of 250 microns. The coating is always removed when joining or connecting fibers.

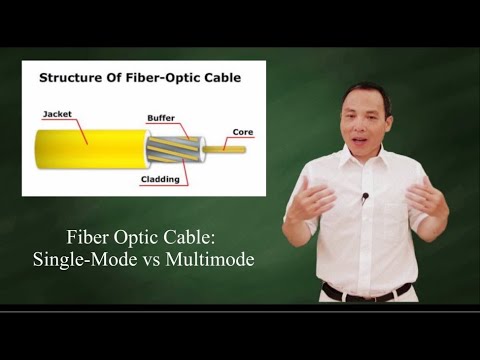

image-What is the diameter of fiber optic cable?

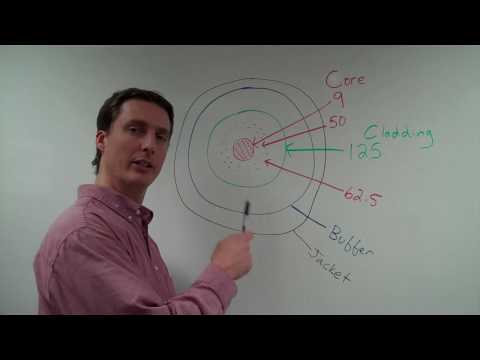

image-What is the diameter of fiber optic cable?
