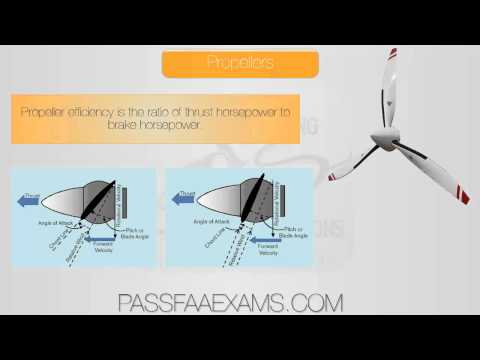

What is propeller pitch?

The pitch is effectively a measure of how far the propeller would move forwards in one revolution. The pitch is used to control the speed of the air leaving the back of the propeller. The pitch of a propeller blade changes as you move along its surface from one end to the other.Jul 9, 2020

How do you determine the pitch of an aircraft propeller?

Measurements needed to determine the pitch of a propeller should be taken 3/4 of the way from the hub to the tip. To measure the pitch, lay the propeller flat on a table, measure 75% of the way from the hub to the tip, and draw a line across the propeller blade.Mar 1, 2002

How does propeller pitch affect performance aircraft?

When you can control the pitch of the propeller, it improves the performance of the aircraft across varying speeds. ... As the plane speeds up (whether on the ground or in the air) the force of the air against the propeller increases, creating more drag.Nov 30, 2015

What is pitch ratio in propeller?

The distance that a propeller theoretically (i.e. without slip) advances during one revolution. Each radius of the blade can have a different pitch and therefore the pitch at r/R = 0.7 is often used as a representative value (the nominal pitch). The pitch ratio of a propeller is the mean pitch divided by its diameter.

How is the propeller pitch control?

Most CSUs use oil pressure to control propeller pitch. Typically, constant-speed units on a single-engine aircraft use oil pressure to increase the pitch. If the CSU fails, the propeller will automatically return to fine pitch, allowing the aircraft to be operated at lower speeds.

image-What is propeller pitch?
image-What is propeller pitch?
Related

What is the difference between a 17 and 19 pitch prop?

The 17" prop will give you a better hole shot but lower top speed. If it is to small it the engine may go over the recomended top RPMs. The 19" prop will give you less of a hole shot but a higher top speed if the motor is strong enough to turn it in the recomended top RPM range.Oct 21, 2010

Related

How many RPM is a plane propeller?

On most general aviation single engine aircraft usually below 2700 RPM. On longer propellers such as on a king air around 2000 RPM due to the length of the propeller. Props are more efficient at lower RPMs.

Related

How fast do propeller planes fly?

Propellers are most suitable for use at subsonic airspeeds generally below about 480 mph (770 km/h), although supersonic speeds were achieved in the McDonnell XF-88B experimental propeller-equipped aircraft. Supersonic tip-speeds are used in some aircraft like the Tupolev Tu-95, which can reach 575 mph (925 km/h).

Related

What happens when a propeller goes supersonic?

As the supersonic speeds are approached (or exceeded locally), shock waves form over sections of the propeller blades- This significantly reduces the propeller efficiency while at the same time causes increased loads on the blade.

Related

What's the difference between a 19 21 pitch prop?

Propeller pitch typically referred to as “prop pitch,” is essentially the distance a propeller would move in a single revolution through soft solid. ... So, in this case, a “21 pitch prop” would move 21 inches forward in one revolution, and a “19 pitch prop” would move 19 inches forward in one revolution.Apr 23, 2021

Related

What is better 3 or 4 blade prop?

The most asked question at the boat shows is almost always “what is the difference between a 3-blade and a 4-blade boat propeller?” The difference between a 3-blade prop vs a 4-blade prop is that the 3-blade (smaller blade ratio) is faster with a higher top speed and the 4-blade (higher blade ratio) has a better hole- ...

Related

What is geometric pitch?

Definition of geometrical pitch

: the distance an element of an airplane propeller would advance in one revolution if it were moving along a helix having an angle equal to that between the chord of the element and a plane perpendicular to the propeller axis.

Related

What is the formula of propeller pitch?

  • Determine your pitch using the mathematical formula (Tan a) * 2Pr, where a is the angle of your propeller, P is the mathematical number Pi, and r is the radius that you determined. Tan is the tangent function, indicated as "TAN" on most scientific calculators. Round the result to the nearest whole number. This number is your pitch.

Related

What does a propeller do for an airplane?

  • Aerofoils are surfaces designed especially to manipulate the airflow around them to generate a directional force. Just as wings produce the force of lift (perpendicular to the wing) to lift the airplane through the air, airplane propellers produce a force of thrust (perpendicular to the propeller blades)...

Related

What pitch prop do I Need?

  • One recommendation is to buy a spare propeller that is two inches lower in pitch than your standard propeller. This reduction in pitch is perfect for tow sports, such as water skiing, due to a slower acceleration and higher power.

Related

What are types of aircraft propeller?

  • 6 Basic Types of Aircraft Propeller That Most of You Don't Know Fixed Pitch Propellers. Fixed pitch propellers are generally two blade propellers and it is the simplest type of propeller design. Variable Pitch Propellers. In this type of aircraft propellers, the pitch can be changed either from the ground before the flight or can be changed during flight. Ground Adjustable Pitch Propeller. ... More items...
