What is PMU data?

What is PMU data?

A Phasor Measurement Unit, also called a PMU or a synchrophasor, is a key tool used on electric systems to improve operators' visibility into what is happening throughout the vast grid network. ... The data collected tells the system operator if the voltage, current, and frequency is staying within specified tolerances.

What does PMU measure?

A phasor measurement unit (PMU) is a device used to estimate the magnitude and phase angle of an electrical phasor quantity (such as voltage or current) in the electricity grid using a common time source for synchronization.

How many data points are obtained at the output of the PMU per second?

Compared with SCADA systems, PMUs provide sample data at a much higher rate, normally at 30, 60, or 120 samples per second, as opposed to traditional SCADA refresh rate of seconds or even minutes. As a result, the amount of data generated by PMUs is significantly larger than that of a SCADA-based system.Aug 20, 2020

What is PMU in construction?

PMU – Phasor Measurement Unit. ... The samples are used to compute the corresponding phasors.Jun 5, 2007

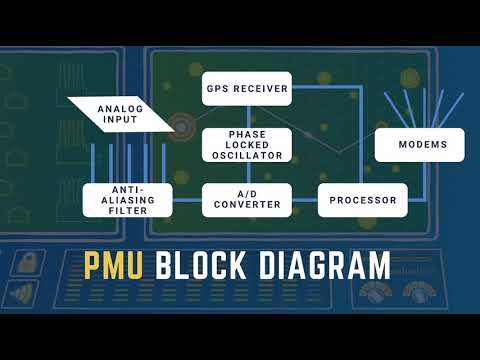

image-What is PMU data?

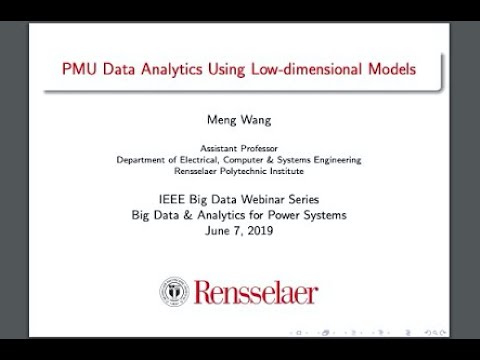

image-What is PMU data?
Related

What is PMU in government?

Guidelines for creating a Project Management Unit (PMU) | Department of Land Resources | Ministry of Rural Development | Govt.Jul 26, 2016

Related

What is the output of PMU?

The PMU output is just the phasor representation of the fundamental frequency. For example, 50 samples per second reporting rate yield a value of 20msec. is calculated between two consecutive samples, with adjustment made for wrapping around +1800 and -1800. The result, is the offset from the nominals frequency.Jan 1, 2021

Related

What is the sampling rate of PMU?

PMUs are devices able to measure the voltage and current phasors of the three phase network with a reporting frequency of typically 30–60 samples per seconds. The frequency of the system is internally computed at a higher sampling rate and reported also at 30–60 samples per second.

Related

What are the applications of PMU?

Typical applications of PMUs in distributed networks include state estimation, dynamic supervision, instability prediction and control, protection and fault location, and power quality monitoring.

Related

How PMU improve the operational efficiency of smart grid?

The optimal PMU Placement decreases number of PMUs that reduces cost of system. Using PMU in smart grid increases reliability of power system stability. Therefore it is possible to monitor the power system observability by using PMU.

Related

What factor makes PMU different from other control and monitoring systems?

PMUs are more accurate and faster (up to 50/60 samples per cycle) compared to the SCADA system. In addition, they can be very useful in light of the dynamic behavior of a power system. Moreover, they can be implemented in most parts of a power system to achieve wide-area monitoring, protection, and control.Nov 29, 2019

Related

What is Synchrophasor data?

Synchrophasors are time-synchronized numbers that represent both the magnitude and phase angle of the sine waves found in electricity, and are time-synchronized for accuracy. They are measured by high-speed monitors called Phasor Measurement Units (PMUs) that are 100 times faster than SCADA.

Related

What is Project Management Unit?

The Project Management Unit (PMU) is the implementing body within the REDD+ program. The unit is responsible for implementing the REDD+ Project Document (PRODOC) under supervision of NIMOS, the coordinating body. The Project Management Unit (PMU) is accountable to the General Director of NIMOS. ... a Project Coordinator.

Related

What is a micro PMU?

Micro Phasor Measurement Unit (μPMU) is capable of providing super-fast and accurate synchronised phasor mea-surements, and eligible for distribution networks applications. ...

Related

What is the use of WAMS in smart grid?

Wide-area measurement systems (WAMS) in smart grid can be defined as a system that captures measurements in the power grid over a wide area and across traditional control boundaries, and then uses those measurements to improve grid stability and events through wide-area situational awareness and advanced analysis.

Related

How does the PMU work?

  • The PMU obtains the measured values from the measuring points and the precise time from time synchronization. The time-stamped synchrophasors for current and voltage are formed from this and transferred together with additional values via the communication module to a server (PDC, Phasor Data Concentrator).

Related

How is the data transmitted from the PMU to the PDC?

  • The data delivered from the PMUs on the PDC are transmitted via the Inter-Control Center Communications Protocol (ICCP) according to DIN EN 60870-6 to the network control Center.

Related

What is a phasor measurement unit (PMU)?

  • A phasor measurement unit (PMU) measures the phasor values of current and voltage. These values get a high precision time stamp and together with the values of power frequency, power frequency change rate and optional binary data that are also time stamped are transmitted to a central analysis station.

Related

What is PMU (PMC) communication?

  • PMU communication according to standard IEEE C37.118 is a client-server communication format in which the PDC (Phasor Data Concentrator) functions as both the client and the server.
