What is grounded coplanar waveguide?

What is coplanar ground?

Conductor-backed coplanar waveguide (CBCPW), also known as coplanar waveguide with ground (CPWG), is a common variant which has a ground plane covering the entire back-face of the substrate. The ground-plane serves as a third return conductor.

What is coplanar waveguide in microstrip?

The Coplanar Waveguide is a planar transmission line. It is widely used for microwave Integrated Circuit design. As shown in the figure, Coplanar Waveguide consists of a conductor strip at the middle and two ground planes are located on either sides of centre conductor. All these lie in the same plane.

What is a coplanar waveguide port?

Co-planar ports are used specifically for co planar waveguide (CPW) circuits. In the case of CPW where you have the ground on the same plane as the transmission line, a common ground and transmission line is used to define port as shown in fig.Nov 30, 2017

What are the advantages of CPW over microstrip?

The advantages of coplanar waveguide are that active devices can be mounted on top of the circuit, like on microstrip. More importantly, it can provide extremely high frequency response (100 GHz or more) since connecting to CPW does not entail any parasitic discontinuities in the ground plane.

image-What is grounded coplanar waveguide?
image-What is grounded coplanar waveguide?
Related

What is CPW feeding?

The CPW is the feeding which side-plane conductor is ground and centre strip carries the signal. The advantage of CPW fed slot antenna is its wide band characteristics. Hence CPW fed slot antenna is most effective and promising antenna for wideband wireless application.

Related

What is the difference between microstrip and stripline?

Stripline is a PCB transmission line trace surrounded by dielectric material suspended between two ground plane layers within of a printed board. Microstrip line routing is a transmission line trace routed on an external layer of the board.Sep 22, 2017

Related

What are transmission lines used for?

The lines that carry radio waves from the radio transmitter to the antenna are known as transmission lines; their purpose is to convey radio-frequency energy with minimum heating and radiation loss. Heating losses are reduced by conductors of adequate size.

Related

What is coplanar in PCB?

Chemically, coplanar PCBs usually refer to 12 of the 209 possible PCB molecules that do not have a chlorine atom stuck in what organic chemists refer to as the “ortho” (or number 2 or 6) position (typically the mono-and di-chloro PCBs are not counted as being coplanar).Oct 5, 2011

Related

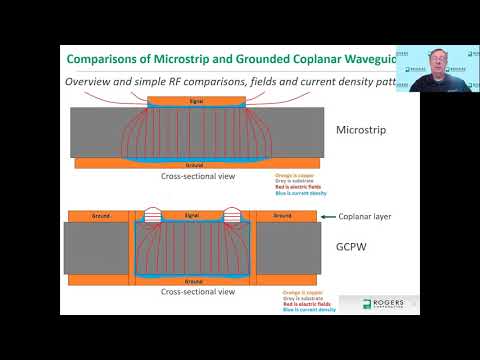

Why CPW based transmission is better than microstrip?

The transmission lines in GCPW circuits suffer greater conductor losses than microstrip, but reduced radiation loss compared to microstrip. In addition to low radiation loss, the neighboring ground planes for the GCPW can significantly benefit in the suppression of spurious modes.Aug 4, 2020

Related

What is the distinguishing feature of a coplanar waveguide?

9. What is the distinguishing feature of a coplanar waveguide? The term "coplanar" is used for those transmission lines/waveguides where all the conductors reside in the same plane; namely, on the top surface of the substrate.Jun 17, 2013

Related

What is Siw technology?

Substrate integrated waveguide (SIW) technology represents an emerging approach for the implementation of compact, low-loss and cost effective components, circuits, antennas and complete systems at microwave and millimeter-wave frequency.

Related

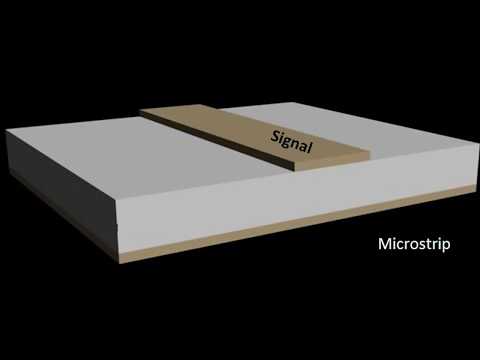

What is microstrip transmission line?

Microstrip is a type of electrical transmission line which can be fabricated with any technology where a conductor is separated from a ground plane by a dielectric layer known as the substrate. Microstriplines are used to convey microwave-frequency signals.
