What is Distortional energy?

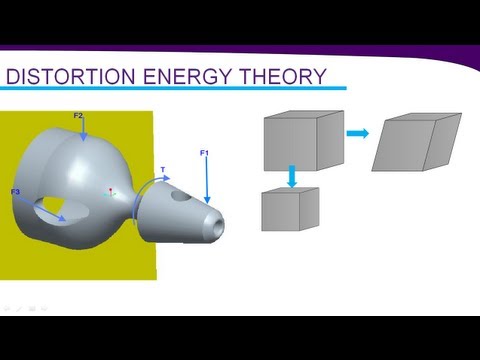

The distortion energy theory says that failure occurs due to distortion of a part, not due to volumetric changes in the part (distortion causes shearing, but volumetric changes due not). ... The explanation for their survival is that because their shape is not distorted, there is no shearing, therefore no failure.

What is Distortional energy?

Distortion energy is a type of energy that is responsible for the change in the shape of a substance. It is one of the two components of strain energy density, whereas the other energy type is strain energy.May 25, 2021

What is the physical meaning of von Mises distortion energy theory?

The maximum distortion criterion (also von Mises yield criterion) states that yielding of a ductile material begins when the second invariant of deviatoric stress. reaches a critical value. It is a part of plasticity theory that mostly applies to ductile materials, such as some metals.

What is the von Mises theory?

Von Mises stress is a value used to determine if a given material will yield or fracture. ... The von Mises yield criterion states that if the von Mises stress of a material under load is equal or greater than the yield limit of the same material under simple tension then the material will yield.Sep 2, 2021

What is strain energy theory?

Maximum strain energy theory This theory postulates that failure will occur when the strain energy per unit volume due to the applied stresses in a part equals the strain energy per unit volume at the yield point in uniaxial testing.

image-What is Distortional energy?
image-What is Distortional energy?
Related

Which theory of failure is used for Aluminium?

Which theory of failure will you use for aluminium components under steady loading? Aluminium is a ductile material so use maximum shear stress theory. Although Maximum distortion energy theory is the best suitable for aluminium.

Related

What does high Von Mises stress represent?

Von Mises stress represents the amount of distortion energy. Continuing on, the system can be written with the distortion energy in terms of the von Mises stress (σVM) [3]: The von Mises' theory states that a ductile solid will yield when the distortion energy density reaches a critical value for that material.Jun 9, 2017

Related

Is von Mises stress conservative?

Von Mises isn't a conservative way of calculating stress intensity though I believe it's commonly used for steel. Some design codes specify using the Von Tresca method, presumably because of its conservatism.Oct 13, 2004

Related

Is von Mises stress tensile or compressive?

The von Mises stress is always positive, while the hydrostatic stress can be positive or negative. It's not appropriate to think of the von Mises stress as being “tensile”, as one would if it were a normal stress (with a positive sign). It's effectively a type of (volume-averaged) shear stress.

Related

Why von Mises stress is used in analysis Quora?

Thus, it's evident they're not the final word on material failure when more intricate stress states, such as biaxial loading or plane strain, say, occur. To understand principal stress, imagine the two square elements in Fig. a below subjected to an axial load in the x-direction.

Related

Who invented von Mises stress?

It wasn't until 1913 that Richard Elder von Mises (2) rigorously formulated the scalar representation of stress based on the second invariant of the deviatoric stress tensor.Jan 14, 2021

Related

What is the difference between principal stress and von Mises stress?

von Mises essentially calculates what is known as the distortion energy density at a particular point in the system. This is useful in ascertaining failure in ductile materials. Principal Stress, on the other hand, is a real Stress.

Related

What is strain explain?

Strain is simply the measure of how much an object is stretched or deformed. Strain occurs when force is applied to an object. Strain deals mostly with the change in length of the object.

Related

What is principal stress and strain?

The three stresses normal to shear principal planes are called principal stress, while a plane at which shear strain is zero is called principal strain.Nov 26, 2021

Related

What is the unit of strain energy?

The unit of strain energy is N-m or Joules.

Related

What is the distortion energy theory of Mises?

  • Distortion Energy Theory (Von Mises) According to the von Mises’s theory, a ductile solid will yield when the distortion energy density reaches a critical value for that material. Since this should be true for uniaxial stress state also, the critical value of the distortional energy can be estimated from the uniaxial test.

Related

How do you calculate distortational energy?

  • This is commonly called distortational energy and can be calculated as The G is the shear modulus. The distortion energy for a general stress state can be compared to distortion energy for a uniaxial test that fails at σ x = σ 1 = σ yld. This gives, This criteria is especially useful since it is a single equation.

Related

What is the distortion energy for a general stress state?

  • The distortion energy for a general stress state can be compared to distortion energy for a uniaxial test that fails at σ x = σ 1 = σ yld. This gives, This criteria is especially useful since it is a single equation. It is also accurate for ductile materials. The shape of the region is an ellispe that is rotated 45 degrees.
