What is a perfectly expanded nozzle?

What does the nozzle do on a rocket?

A rocket engine uses a nozzle to accelerate hot exhaust to produce thrust as described by Newton's third law of motion. The amount of thrust produced by the engine depends on the mass flow rate through the engine, the exit velocity of the flow, and the pressure at the exit of the engine.

Why do rocket nozzles expand?

The basic idea is to lower the pressure of the exhaust by expanding it in the nozzle, until it reaches ambient air pressure at the exit. ... The expanding nozzle addresses this to a degree by including two skirts on a single engine, one inside the other.

What is nozzle expansion ratio?

The nozzle exit area, Ae, corresponding to the exit Mach number is given by. The section ratio, or expansion ratio, is defined as the area of the exit Ae divided by the area of the throat At.

Which nozzle is used in rocket engine?

The main type of rocket engine nozzles used in modern rocket engines is the de Laval nozzle which is used to expand and accelerate the combustion gases, from burning propellants, so that the exhaust gases exiting the nozzles are at hypersonic velocities.

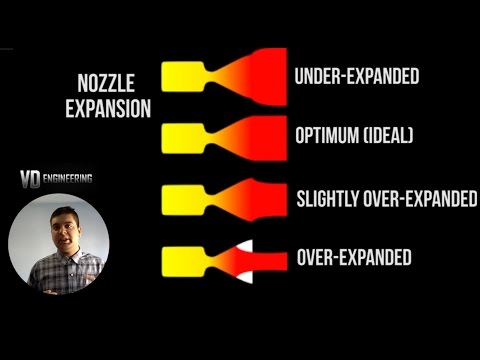

image-What is a perfectly expanded nozzle?
image-What is a perfectly expanded nozzle?
Related

Why is the nozzle so important?

The nozzle is an important part of any rocket motor: it converts high pressure and high temperature(with slow net velocity) inside the combustion chamber into a high velocity, but low pressure. ... This is what high pressure is. The nozzle helps align the movement of the molecules to the same direction.

Related

What is nozzle theory?

The primary function of a nozzle is to channel and accelerate the combustion products produced by the burning propellant in such as way as to maximize the velocity of the exhaust at the exit, to supersonic velocity. ...Apr 14, 2015

Related

How does a nozzle increase pressure?

As fluid enters the smaller cross-section, it has to speed up due to the conservation of mass. To maintain a constant amount of fluid moving through the restricted portion of the nozzle, the fluid must move faster. The energy to make this fluid speed comes from random motion of molecules, i.e is pressure.

Related

Why do rocket nozzles get wider instead of smaller?

The combustion chamber ignites the air to expand it, thus, causing more thrust. And most jet engines (such as turbofan engines) increase the amount of thrust by simply having the engine get narrower as you get behind. (i.e hole getting smaller). But for rockets, the nozzle gets larger and larger.Nov 2, 2016

Related

Are Aerospikes better than bell nozzles?

Advantages and Disadvantages of Using an Aerospike Nozzle: The aerospike nozzle has 90% overall better performance than the conventional bell shaped nozzle. The efficiency at low altitudes is much higher because the atmospheric pressure restricts the expansion of the exhaust gas.

Related

How do rocket engines not melt?

Liquid rocket engines using very cold propellants like liquid hydrogen usually use the propellant as a cooling fluid before burning it, keeping the engine from melting. Other engines and solid motors use ablative materials in the nozzle similar to how a heat shield used for reentry works.

Related

What is convergent nozzle?

A convergent nozzle is a nozzle that starts big and gets smaller-a decrease in cross-sectional area. As a fluid enters the smaller cross-section, it has to speed up due to the conservation of mass. To maintain a constant amount of fluid moving through the restricted portion of the nozzle, the fluid must move faster.Aug 5, 2012

Related

What is nozzle flow separation?

Flow separation occurs in the supersonic portion of a. rocket nozzle when the wall pressure at one point of the nozzle. drops to 20 to 50 percent of the surrounding pressure due to. over-expansion.

Related

What is a nozzle?

A nozzle is a device designed to control the direction or characteristics of a fluid flow (especially to increase velocity) as it exits (or enters) an enclosed chamber or pipe. A nozzle is often a pipe or tube of varying cross sectional area, and it can be used to direct or modify the flow of a fluid (liquid or gas).

Related

What is an expanding nozzle?

  • The extension is almost cylindrical compared to the inner section. The expanding nozzle is a type of rocket nozzle that, unlike traditional designs, maintains its efficiency at a wide range of altitudes. It is a member of the class of altitude compensating nozzles, a class that also includes the plug nozzle and aerospike.

Related

What type of nozzle is used in a rocket?

  • Rockets typically use a fixed convergent section followed by a fixed divergent section for the design of the nozzle. This nozzle configuration is called a convergent-divergent, or CD, nozzle. In a CD rocket nozzle, the hot exhaust leaves the combustion chamber and converges down to the minimum area, or throat, of the nozzle.

Related

What happens when a gas enters a nozzle?

  • Once the gases reach the nozzle, they experience an adiabatic, reversible expansion process which is accompanied by a drop in temperature and pressure and a conversion of thermal energy into kinetic energy. Several increasingly more complicated methods have been used for the analysis of the process.

Related

What is a CD nozzle?

  • A nozzle is a relatively simple device, just a specially shaped tube through which hot gases flow. Rockets typically use a fixed convergent section followed by a fixed divergent section for the design of the nozzle. This nozzle configuration is called a convergent-divergent, or CD, nozzle.
