What is a linear DC motor?

Is a DC motor a linear system?

Unlike their wound-field counterparts, permanent magnet DC (PMDC) motors exhibit linear behavior. ... The linearity of the relationship between speed and torque makes permanent magnet motors ideal for adjustable speed uses and for servo applications.Jul 6, 2017

What is a linear DC machine?

Introduction to Linear DC Machine

It comprises of battery with a resistor linked with each in the use of a switch that makes frictionless rails. The expression of the force applying on the wire in the existence of magnetic field is mention here.
Apr 23, 2021

Are linear motors AC or DC?

Examples include coilguns and the motors used on some maglev systems, as well as many other linear motors. In high precision industrial automation linear motors are typically configured with a magnet stator and a moving coil.

What is meant by linear motor?

Definition of linear motor

: a motor that produces thrust in a straight line by direct induction rather than with the use of gears.

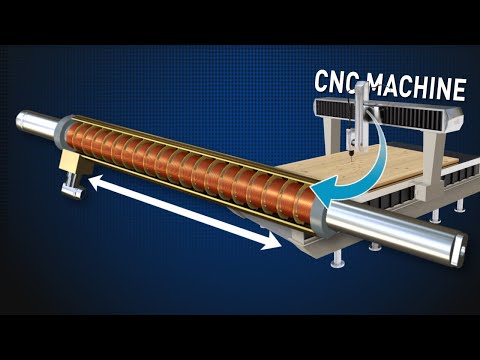

image-What is a linear DC motor?

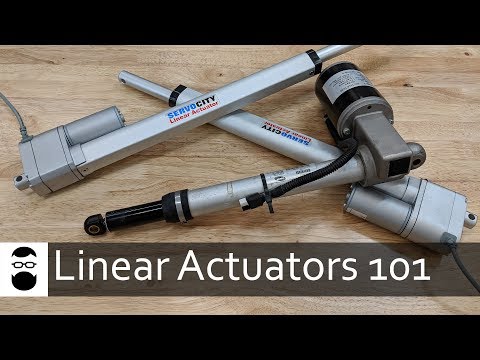

image-What is a linear DC motor?

What are the elements of linear DC machine?

As shown in Figure 4, a simple linear motor consists of a current source, a magnetic field, and a wire that is free to move along a set of rails.


What are the 3 types of DC motors?

There are 3 main types of DC motor that are available:- Series, Shunt and Compound. These terms relate to the type of connection of the field windings with respect to the armature circuit.


Which DC motor is preferred for elevator?

DC cumulative compound motor having high starting torque up to 450% depending upon the degree of compounding. The speed regulation is varying up to 25 ~ 30%. That's why these motors are used in elevators.


What is DC motor principle?

The DC motor is the motor which converts the direct current into the mechanical work. It works on the principle of Lorentz Law, which states that “the current carrying conductor placed in a magnetic and electric field experience a force”. And that force is the Lorentz force.Apr 20, 2020


How does a linear motor work?

The linear motor primary part is connected to the power supply to produce a magnet field. By changing the current phase in the coils, the polarity of each coil is changed. ... The rate of change of the current controls the velocity of the movement, and the amperage of the current determines the force generated.


What is commutator in DC machine?

The commutator on the DC generator converts the AC into pulsating DC. The commutator assures that the current from the generator always flows in one direction. The brushes ride on the commutator and make good electrical connections between the generator and the load.


How does a decrease in flux produce an increase in speed in a linear machine?

1 Answer. The instant flux is reduced, the back emf reduces and this causes the armature to increase current. More current means a higher driving torque and this accelerates the armature to run at a higher speed until the speed equation is in balance again.Jan 31, 2018


What is the primary difference between ball screws and linear motors?

While ball screws typically use a rotary encoder mounted to the motor for positioning feedback, linear motors use a magnetic or optical linear scale for position feedback. The linear scale measures position at the load, which gives a more accurate reading of the actual position.Dec 2, 2014


What are DC and AC motor based actuators?

Alternating magnetic fields caused by alternating current direction cause a shaft to rotate. The differences between these two current types determine the motor characteristics. DC stands for Direct Current while AC stands for Alternating Current. DC has current that runs continually in a single direction.Mar 1, 2018


What is linear behavior for DC motors?

  • When the term "linear behavior" is used to describe a system, it implies that the system's output is directly proportional to the input. Unlike their wound-field counterparts, permanent magnet DC (PMDC) motors exhibit linear behavior.


What is linear DC power supply?

  • A linear DC power supply regulates the output voltage through a big transformer and then by dropping excess voltage in a series dissipative components. Regulated linear DC power supplies have very good load and line regulation, and have very little ripple and noise.


How does a linear electric motor work?

  • Linear motors are electric induction motors that produce motion in a straight line rather than rotational motion. In a traditional electric motor, the rotor (rotating part) spins inside the stator (static part); in a linear motor, the stator is unwrapped and laid out flat and the "rotor" moves past it in a straight line.


What is a DC linear actuator?

  • A DC linear actuator is an electromagnetic switching or actuation device used to activate a range of secondary mechanisms. These devices are defined by two specific characteristics - a linear actuation output and the exclusive use of a direct current (DC) power source.
