How to check generator output?

How to test a generator?

  • Disconnect the negative battery cable with a wrench. Clip the jumper cables to the battery terminals: red to positive,black to negative.
  • Remove the hot (positive) wires from the generator's field and armature terminals with a wrench and screwdriver.
  • Clip the black (ground) jumper cable to the terminal on the generator marked "field." Clip the red (positive) jumper cable to the terminal on the generator marked "armature."
  • Insert the red positive lead from the voltage meter under the red jumper cable clamp. ...

How to test AVR generator?

  • How do you test an AVR generator? You can do a simple test with the AVR still mounted on the AC generator. Wind the voltage trim pot up and down and see what happens to the AC generator output. You can also bench test any AVR with a variable output Autotransformer (variac) and some test load that represents the AC generator field resistance.

How is the voltage output of a generator controlled?

  • The voltage of a separately-excited DC generator can be controlled by controlling generator speed, by using a variable field supply, or by a combination of both. A self-excited dc generator can be controlled by generator speed or by a rheostat or electronic circuit that reduces the field current.

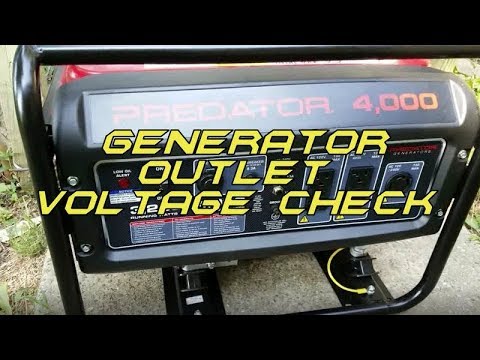

image-How to check generator output?
