How high will a ram pump lift water?

How much fall does a ram pump need?

To function, the pump does require a reasonable amount of water that will drop at least 3'-5'. The level that the pump can raise water to depends on the water's head (total drop the water will make). This design was worked out by Clemson University.

How much water do you need for a ram pump?

Given all these variables, the amount of water delivered with a single 2” ram pump system can range from a low of 17 gallons per day to 4,000 gallons per day or more.

What is a Papa Pump?

The Papa Pump is a durable and lightweight pump that delivers water over long distances and high elevations without fuel or electricity. The Papa Pump is a modern 'hydro ram' based on the principles of a traditional ram pump, manufactured by Water Powered Technologies.

Does ram pump need moving water?

To use a ram pump, you must have a source of water situated above the pump. ... Once the water reaches its maximum speed, this valve slams shut. As it slams shut, the flowing water develops a great deal of pressure in the pump because of its inertia. The pressure forces open a second valve.

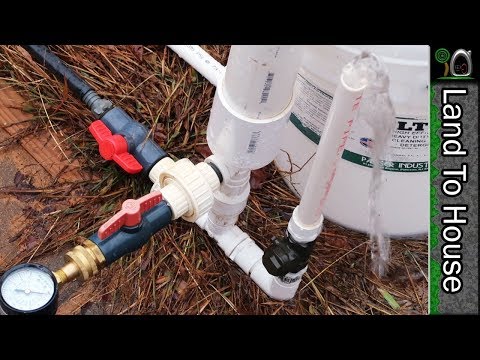

image-How high will a ram pump lift water?

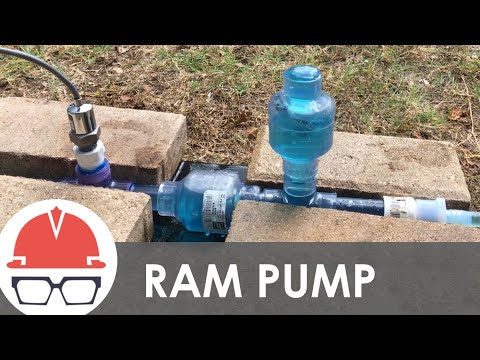

image-How high will a ram pump lift water?

How efficient is a ram pump?

Efficiency. A typical energy efficiency is 60%, but up to 80% is possible.


What is the maximum height water can be pumped?

The atmospheric pressure would be capable of sustaining a column of water 33.9 feet in height. If a pump could produce a perfect vacuum, the maximum height to which it could lift water at sea level would be 33.9 feet, as shown in Example 1.


Why can water only be lifted 10.3 m?

Water is pumped from a well by creating a partial vacuum above the water by the pump. The amount of vacuum, in inches of mercury, is equal to the weight of the column of water from the water table to the surface. ... Therefore, a total vacuum could only pump water from a depth of just under 34 feet or 10.3 meters.


What can I use to pump water out of my basement?

A submersible pump is necessary for removing the water. The pump is encased in a waterproof shell and features a sealed electrical cord and a fitting that connects to a regular garden hose or a sump hose, which is larger in diameter. The larger the hose, the more quickly the pump will remove the water.


Can I pump water from a river?

Yes, from a physical standpoint it is not difficult to pump the water. The cost depends on how fancy you make it. My parents had a cabin on a river in Oregon. They simply had a small portable pump that sat on a concrete block and was chained to a tree.


Can a water pump work without electricity?

The spiral pump (also known as water wheel pump) is a hydraulic machine that pumps water without electricity. ... Simple installation and low maintenance costs make the spiral pump a favorable, environmentally-friendly alternative.


What is a pump Venturi?

A Venturi vacuum is created by a pump with compressed air running through it, yet the pump has no moving parts. Compressed air runs through the initial chamber, then a smaller portal that opens into another larger chamber, which is like the first one.Oct 17, 2018


How much water does a hydraulic ram pump pump?

  • Hydraulic ram pumps are very inefficient, generally pumping only one gallon of water for every eight gallons of water passing through the ram. They will, however, pump water up ten feet (or more in some cases) of vertical elevation for every foot of elevation drop from the water source to the hydraulic ram.


What is a ram pump and how does it work?

  • The basic principle behind ram pumps is to use a large amount of water falling a short distance to pump a small amount of water to a higher elevation. Typically, only 2% to 20% of the water flowing through a ram pump system will actually be delivered to the storage tank or trough.


What size ram pump do I need for my tank?

  • A 4-inch ram pump can deliver the same amount of water to a storage tank that is 245 feet higher than the pump using the same length of 4-inch diameter steel drive line. The stream flow required for this is at least 102 gallons per minute (0.23 cfs).


What type of drive pipe is used for a ram pump?

  • Hydraulic ram pump installations using a PVC drive pipe will work well, but the elasticity of the pipe will allow some of the water hammer shock wave to dissipate slightly with pipe wall expansion. If PVC pipe is used for the drive pipe installation, choose PVC piping with a thicker wall.
