How does an EGR work on a diesel?

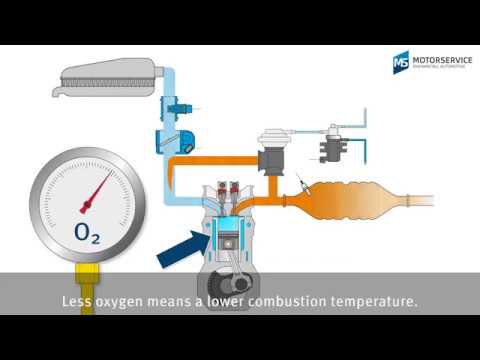

The EGR system works by returning a small portion of exhaust gas to the engine's combustion chambers through the intake manifold, lowering combustion temperatures and therefore reducing the amount of NOx emitted. The EGR valve is the main component of the EGR system and it's normally closed.May 6, 2021

What activates the EGR valve?

When the engine is idling, the EGR valve is closed and there is no EGR flow into the manifold. The EGR valve remains closed until the engine is warm and is operating under load. As the load increases and combustion temperatures start to rise, the EGR valve opens and starts to leak exhaust back into the intake manifold.

When should an EGR valve open?

The EGR valve is closed when the engine is starting up. During idle and at low speeds, only a small amount of power is required, and therefore only a small amount of oxygen, so the valve gradually opens – it can be up to 90% open at idle.

Does EGR valve effect Turbo?

The EGR valve is likely to stick and become coked up on some applications. BTN Turbo warns that this can have a significant effect on turbocharger performance. A faulty EGR valve can result in excessive carbon/soot at the turbine end, causing the VNT mechanism to stick.Sep 13, 2016

Does EGR increase fuel economy diesel?

On modern Diesel engines, EGR reduces engine efficiency but greatly improves NOx emissions. On modern gasoline engines, EGR improves efficiency at both light and heavy loads. If it is working properly it adds a non noticeable increase in fuel economy one that you will never notice.

image-How does an EGR work on a diesel?
image-How does an EGR work on a diesel?
Related

Does EGR valve open at idle?

The EGR valve is closed when the engine is starting up. During idle and at low speeds, only a small amount of power is required, and therefore only a small amount of oxygen, so the valve gradually opens – it can be up to 90% open at idle.

Related

What happens if EGR valve is stuck open?

If the EGR valve is stuck in the open position, the vehicle will experience a rough idle or frequently stall. If the valve is not completely stuck open but never achieves a tight seal when it closes, the engine can "miss" or shudder because of the improper mixture of the combustion elements.

Related

Can car run without EGR?

It might affect the environment but it is not harmful to the engine. Some people are running for more than 50k km without EGR. The EGR is disabled in all remapping.

Related

Can a bad EGR valve cause o2 sensor code?

Any vacuum leak, including the leak in the EGR valve control system that you described, could cause the P0153 code. If the two codes do not recur, you should still check the output of the oxygen sensor for correct waveform and output (switching between 0.2 to 0.9 volts).Jan 23, 2018

Related

Can bad EGR valve cause backfire?

A defective positive crankcase ventilation (PCV) valve or a malfunctioning exhaust gas recirculation (EGR) valve also can cause a backfire.May 14, 1994

Related

What causes a EGR valve to go bad?

As engine temperatures rise, the EGR valve opens progressively wider to compensate. Once engine temperatures have cooled, the EGR valve then closes again. ... If the EGR temperature goes bad, or takes faulty reading as the result of carbon build-up, your EGR valve will fail to perform the way it should.Feb 28, 2019

Related

What does a bad EGR solenoid do?

  • If the computer detects an issue with the EGR solenoid, circuit, or system, it will set off the Check Engine Light to notify the driver of the issue. A bad EGR solenoid can cause a variety of different trouble codes, so having the computer scanned for trouble codes is highly recommended.

Related

What is an EGR valve and what does it do?

  • a method of returning part of the exhaust gases to an engine by means of a valve (EGR valve) in order to reduce the combustion temperature, which leads to a reduction in the formation of pollutants.

Related

How to test an EGR valve?

  • How to test an EGR valve with a hand mirror? As you do this, watch the valve diaphragm movement. Use a small hand mirror for this, if necessary. If the stem or diaphragm doesn’t move, disconnect the thin vacuum hose from the top of the valve.

Related

What is an EGR pressure feedback sensor?

  • The EGR valve pressure feedback sensor is an electronic sensor that is used to control your engine’s EGR valve. It is sometimes referred to as the delta pressure feedback of EGR or differential pressure feedback of EGR (DPFE) sensor. To reduce engine emissions, modern vehicles have exhaust gas recirculation systems.
