How does a contact profilometer work?

Contact profilometers

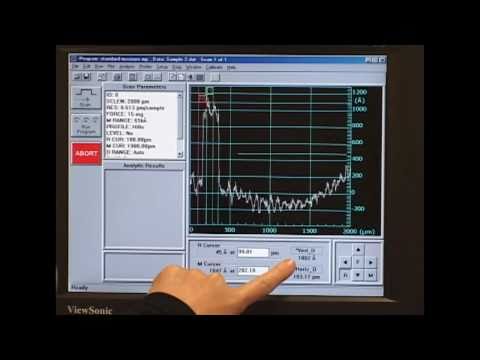

A diamond stylus is moved vertically in contact with a sample and then moved laterally across the sample for a specified distance and specified contact force. A profilometer can measure small surface variations in vertical stylus displacement as a function of position.

How much does a profilometer cost?

While a handheld profilometer can cost over $7,500 from the large German and Japanese suppliers, you are paying to support the sales rep and high OEM overhead. Buying directly from the manufacturer on Amazon brings you this roughness tester with a price of less than $1000.Jul 23, 2021

What is Profile meter?

an instrument for measuring the irregularities of a surface; the readout of the measurement results is a scale giving one of the parameters used to evaluate these irregularities—surface roughness. This instrument may be used to measure inner surfaces with diameters of 6 mm or greater. ...

When was the profilometer invented?

Diamond Stylus Profilometer

These are the original profilometers that were first introduced in the 1940s and their operating principle is very similar to that of an LP player.
Sep 2, 2018

What is the use of profilometer?

A profilometer is a measuring instrument used to measure a surface's profile, in order to quantify its roughness. Critical dimensions as step, curvature, flatness are computed from the surface topography.

image-How does a contact profilometer work?
image-How does a contact profilometer work?
Related

What is surface roughness test?

A roughness tester is used to quickly and accurately determine the surface texture or surface roughness of a material. A roughness tester shows the measured roughness depth (Rz) as well as the mean roughness value (Ra) in micrometers or microns (µm).

Related

How surface roughness is measured?

With a contact-type roughness meter, surface roughness is measured by tracing the probe across the surface of the target. In contrast, a laser-based non-contact roughness meter emits a laser beam onto the target and detects the reflected light to measure the roughness.

Related

How do optical comparators work?

Optical comparators are a type of optical measuring instrument. The measurement principle is similar to that of optical microscopes. The target is placed on the stage, and a light is shined on the target from underneath. This causes the target's profile, or shadow, to be projected on the screen.

Related

How do I find my surface profile?

When pressed against a roughened steel surface, the foam collapses and forms an impression of the surface. Placing the compressed tape between the anvils of a micrometric thickness gage and subtracting the contribution of the incompressible substrate, 2 mils, gives a measure of the surface profile.Sep 20, 2021

Related

What is Taylor Hobson talysurf?

Overview - Taylor Hobson Form Talysurf CNC Series is a versatile, high range, high resolution, automated surface finish, form and contour measuring instrument. ... The Form Talysurf® CNC Series is supplied with Taylor Hobson's Q-Link production interface, software that meets the Industry 4.0 philosophy.

Related

What is profile projector?

A profile projector is an optical measuring instrument used in metrology and quality control. This device allows the shadow of the part to be measured to be projected on a screen which is then used by the operator to perform the measurements.x. It's the principle of Chinese shadows, but it still works very well today.

Related

How does a profilometer measure roughness?

Types and Features of Profilometers / Roughness Gauges

This type of measuring system touches the target on the stage with a probe to accurately measure the surface profile. The stylus traces the surface of the target, and the vertical displacement of the stylus is detected electronically.

Related

How does a white light interferometer work?

Light interference occurs when there is a difference in distance traveled by the light from the surface of a target object to a certain point; the white light interferometer uses this phenomenon to measure the surface roughness of a sample.

Related

Why can't I measure the surface profile with my contact contact profilometer?

  • Contact profilometers are limited to capturing line data across the target surface. Because of this, the surface profile cannot be measured across the entire surface and minute surface details may not be captured. The VR Series can scan the entire surface of the target.

Related

What is the difference between contact and non-contact profilometers?

  • Contact systems physically trace a stylus probe over the target surface in order to capture 2D line data, while non-contact profilometers (also called "optical profilometers") project light onto the target surface and capture 3D surface data. Conventionally, contact profilometers were the standard for profile and roughness measurements.

Related

What are the different types of profilometers?

  • Profilometers come in many shapes and sizes, but they can be divided into two basic types – contact and optical. Contact profilometers measure surface profile by physically tracing the surface with a stylus.

Related

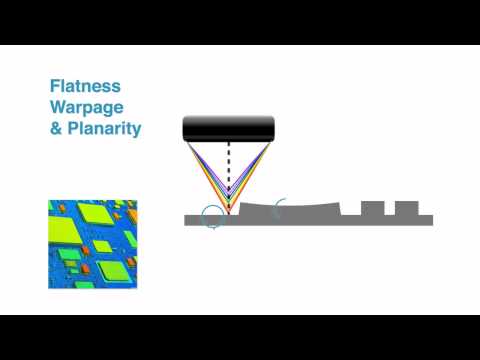

What is an optical profilometer used for?

  • Profilometers are commonly used for measuring the roughness, or finish of a surface. Additionally, optical profilometers are capable of taking 3D shape measurements, such as flatness, waviness]
