How do you make gear in SolidWorks?

How do you make gear in SolidWorks?

Navigate and Right click “Spur Gear” from the listed options and left click “Create Part.” The part should appear in the main editing window. 4. Change the options in the left hand column (titled “Configure Component”) to create the desired gear.

How do you design a gear?

For design of gears, determine elements such as size, tooth shape, pitch, number of teeth, amount of profile shift, material, need for heat treating and/or grinding, choice for kind of tooth surface finish, amount of backlash, helix angle, helix direction, method of mounting on shaft, precision class, etc., the ...

What is a gear module?

"Module" is the unit of size that indicates how big or small a gear is. It is the ratio of the reference diameter of the gear divided by the number of teeth.

How do you add gear teeth in Solidworks?

From the Windows Start menu, click All Programs > SOLIDWORKS version > SOLIDWORKS Tools > Toolbox Settings. From the Configure Hardware page, click GB, Power Transmission, and then click Gears.

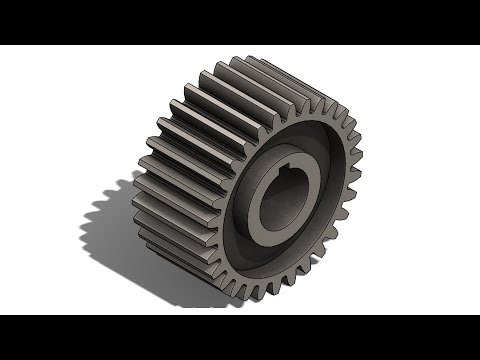

image-How do you make gear in SolidWorks?
image-How do you make gear in SolidWorks?
Related

What is Toolbox in Solidworks?

The Toolbox is a collection of several powerful tools built into SolidWorks; it can increase productivity and decrease the time required to complete a design. The Toolbox contains a vast library of standard hardware components that can easily be dropped into a design at any point.Jul 4, 2020

Related

What is gear tooth profile?

Gear Tooth Profile: One of the fundamental s of gear design is the profile of the gear tooth. Gears generally have an involute curve tooth profile. There are other types of gear profiles, but they are mainly utilized in specialty applications such as cycloidal gears in clocks and watches.

Related

How do you make gears in SolidWorks?

  • In this solidworks tutorial, you will create gear. 1. Click New. Click Part, OK. 2. Click Front Plane and click on Sketch. 3. Click Circle and sketch a circle center at origin. Click Smart Dimension, click sketched circle and set it diameter to 1in.

Related

What are the features of SolidWorks?

  • SolidWorks is a parasolid-based solid modeler, and utilizes a parametric feature-based approach to create models and assemblies. Parameters refer to constraints whose values determine the shape or geometry of the model or assembly.

Related

How to design gears?

  • Adding Variables. Primitive Diameter = Module*Teeth No. Remember that any gears in mesh must have the same module.
  • Drawing the Gear's outline. Draw a circle,then assign its diameter to "Head Diameter".
  • Adding a Bore (Optional) If you want,you can add a bore... Just add another circle - of any dimension - inside the outer one.
  • Extruding the Sketch (Base) Now extrude the selected contour in any dimension you like,but remember to be realistic.
  • Drawing the Gear's teeth inbetweens. Draw 2 circles,then assign their diameters to "Primitive Diameter" and "Foot Diameter". ...
  • Extruding the Sketch (Cut) Now extrude the selected contour to cut the model all the way through.
  • Creating the Gear's teeth. Now create a circular pattern,then assign its Number of Instances to "Teeth No.".

Related

What is SolidWorks GD&T?

  • What is SOLIDWORKS GD&T?: Everything to Know GD&T in SolidWorks. SolidWorks is a fully equipped software for modelling and detailing and as such has great tool sets for creating drawings with the proper application of GD&T principles. Manual GD&T. ... DimXpert. ... Auto Dimension Scheme. ... DimXpert in Drawings. ... Conclusion. ... Links and References
