Do piston rings come pre gapped?

Does piston ring orientation matter?

Yes, piston ring orientation is important to prevent oil and and compression losses. Many engines has been assembled with new piston rings with no piston rings offset that cause high oil consumption . These engines require a redo correction of rings orientation.

What causes piston rings to align?

It is my understanding that piston rings rotate frantically in a running engine unless something is preventing their rotation, such as a pin. Extreme ovalisation of the cylinder bore will also result in ring alignment, since the rings will eventually find a "most relaxed" position in the bore.Nov 26, 2003

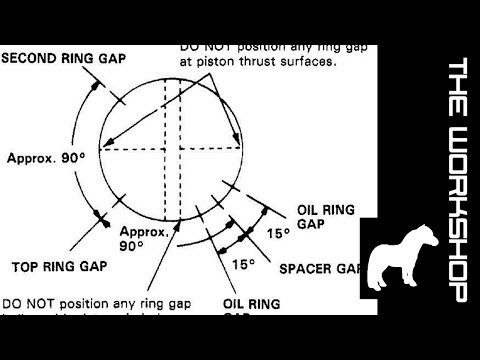

Where should piston ring gaps be placed?

Make sure the gaps of all of the rings are spaced 90 degrees apart from eachother. Be sure to use a quality ring compressor to prevent damage to the rings while installing the piston into the cylinder bore.Nov 27, 2018

What causes piston rings to fail?

Bad fuel or cylinder oil quality, bad combustion process, wrong fuel timing, worn liner etc. are the normal cause of piston rings worn out. The most common indication or sign of a worn ring is gas passing into the crankcase or under piston area known as blowby.Jan 29, 2021

image-Do piston rings come pre gapped?
image-Do piston rings come pre gapped?
Related

What happens if piston rings are installed upside down?

With the taper of the ring upside down, oil will be scraped up with each upward stroke to be left in the combustion chamber and burned on the power stroke. It only takes a minute, check all rings on the piston for correct installation before installing the pistons.

Related

Do piston rings rotate in cylinder?

Once after piston rings and engine cylinders walls wear they are no longer perfectly round and cylinder walls become tapered , piston rings become oval to wearing to shape of cylinder. After piston rings break in period and Cylinders wear , rings don't rotate as much and stay close to same location.

Related

What causes ring rotation?

During the combustion event, cylinder pressure follows a path down the crevice volume and into the ring groove above the ring. It then fills the ring back spacing to press the ring out against the cylinder wall. ... The cross-hatch in the cylinder walls induces rotation of the rings.Oct 12, 2017

Related

What happens if piston ring gap is too small?

If the gap is too small, the ends of the ring may collide which can lead to the ring breaking, scoring the bore, and eventually lead to complete breakdown. However, piston rings can be made from a wide variety of irons and steels with very different coefficients of expansion.

Related

How much space should be between piston and cylinder?

Arule of thumb is that the gap clearance should be 0.03 mm for each 10 mm of cylinder diameter, measured in the unworn part of the bore. The ring must not be measured at the top of the bore because its gap will close as it is moved towards the bottom of the cylinder.

Related

Does ring gap affect compression?

Maximum ring gap is an important part of ring performance in that too much gap results in lost compression, power loss, and ultimately poor oil control.

Related

What is piston ring side clearance?

See all 23 photos Piston ring groove side clearances should be between 0.001- and 0.004-inch on average. ... The 5/64-inch thickness (0.078-inch) called for a significant amount of pressure against the cylinder wall for proper sealing. Piston ring manufacturers call this radial tension.Nov 12, 2019

Related

How do you install piston rings?

  • Starting with the oil control ring, install your rings into their grooves. Insert the oil control ring into the groove closest to the bottom of the piston. Slide the lubricated ring over the head of the piston and work it downwards until it is in the proper location. Next, install the compression rings.

Related

How to install piston rings?

  • Three Piece Flex Vent. First,place the spacer in the grove. ...
  • One&Two Piece Oil Rings. Using a proper ring installation tool,open the oil ring just enough to allow the ring to go over the top diameter of the ...
  • Compression Rings. ...
  • Final Steps. ...

Related

What is piston ring groove?

  • A piston ring is a split ring that fits into a groove on the outer diameter of a piston in a reciprocating engine such as an internal combustion engine or steam engine. The main functions of piston rings in reciprocating engines are: Sealing the combustion chamber so that there is minimal loss of gases to the crank case.
