## Can you get moment of inertia from SOLIDWORKS?

## Can you get moment of inertia from SOLIDWORKS?

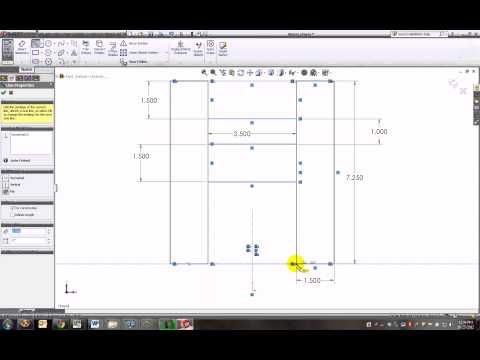

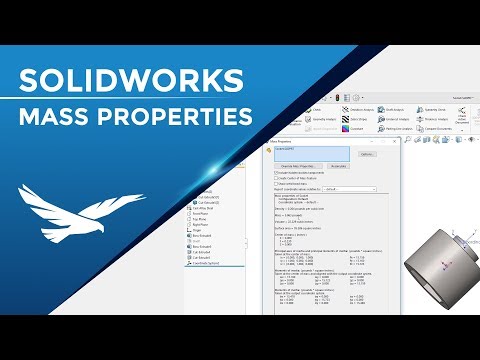

In SOLIDWORKS, go to evaluate, **select Mass Properties**. Then, it will show the properties of the solid part. In the Mass Properties windows, it will show the Moment of Inertia of the part.

## How is moment of inertia calculated?

The moment of inertia must be specified with respect to a chosen axis of rotation. For a point mass, the moment of inertia is just the **mass times the square of perpendicular distance to the rotation axis, I = mr ^{2}**.

## How do I read mass properties in SOLIDWORKS?

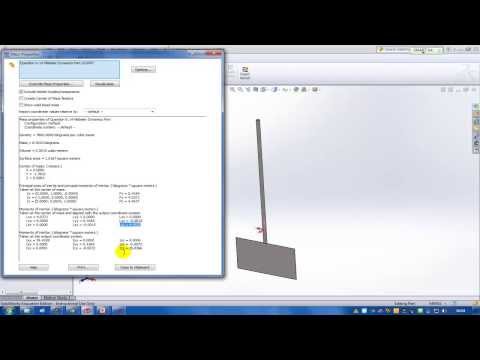

To display mass properties: Select items (components or solid bodies) to be evaluated. If no component or solid body is selected, the mass properties for the entire assembly or part are reported. **Click Mass Properties (Tools toolbar)** or Tools > Evaluate > Mass Properties.

## How do you do a motion analysis in SOLIDWORKS?

To start a motion study in SOLIDWORKS you can **click on “Motion Study 1” tab** on the lower left corner of SOLIDWORKS user interface. Make sure to click on “Expand Motion Manager” to display the SOLIDWORKS Motion Manager timeline view. The first thing you need to do is to select the type of simulation you want to perform.Feb 20, 2018

### Related questions

##### Related

### Is mass the same as weight in Solidworks?

Viewing Mass Properties

This mass properties button is in the same location in an assembly file. However, it's **the weight of the entire assembly** that is calculated when the mass properties are calculated in an assembly.Aug 22, 2018

##### Related

### Why do we calculate moment of inertia?

The moment of inertia of an object is a calculated **measure for a rigid body that is undergoing rotational motion around a fixed axis**: that is to say, it measures how difficult it would be to change an object's current rotational speed.Apr 20, 2019

##### Related

### How do you calculate moments?

We can calculate the moment of a force using the equation: **Moment equals Force multiplied by the Perpendicular Distance to the Pivot.**

##### Related

### Is mass equal to weight?

The difference between mass and weight is that mass is the amount of matter in a material, while weight is a measure of how the force of gravity acts upon that mass. Mass is the measure of the amount of matter in a body. ... Weight usually is denoted by W. **Weight is mass multiplied by the acceleration of gravity (g)**.Aug 11, 2019

##### Related

### How do you evaluate mass in SolidWorks?

**Click Mass Properties (Tools toolbar) or Tools > Evaluate > Mass Properties**. The calculated mass properties appear in the dialog box. If an assembly contains components with overridden mass properties, those components are listed at the bottom of the Mass Properties dialog box.

##### Related

### Is mass a weight?

In common usage, the mass of an object is often referred to as its weight, though these are in fact different concepts and quantities. In scientific contexts, mass is **the amount of "matter" in an object** (though "matter" may be difficult to define), whereas weight is the force exerted on an object by gravity.

##### Related

### How do you animate a motion in Solidworks?

You can create an animation by **dragging the time bar along the timeline to a point in time**, and then moving a component to a target location. The MotionManager moves the component from its initial position to the position that you designate at a specified time.

##### Related

### What is the difference between animation and basic motion in Solidworks?

Animations use **interpolation** to define the motion of components between these key points. In basic motion studies, on the other hand, mass, inertia, component interaction and gravity are taken into account and the motion is calculated. The position of components is determined by the physics of the situation.

##### Related

### How does solidworks motion work?

The motion simulation program uses **material properties from the CAD parts to define inertial properties of mechanism components**, and translates CAD assembly mating conditions into kinematic joints. It then auto- matically formulates equations that describe the mechanism motion.

##### Related

### How is it possible to calculate the moment of inertia?

- Measure the distance r from any particle in the object to the axis
**of**symmetry - Square that distance
- Multiply that squared distance times the mass
**of**the particle - Repeat for every particle in the object
- Add all
**of**these values up

##### Related

### What is the formula for the moment of inertia?

- The formula for moment of inertia for a circle is the product of
**pi over four times the radius to the power of four**. The area moment of inertia is also called the second moment of area.

##### Related

### What is the origin of the moment of inertia?

- In 1673 Christiaan Huygens introduced this parameter in his study
**of**the oscillation**of**a body hanging from a pivot, known as a compound pendulum. The term moment**of inertia**was introduced by Leonhard Euler in his book Theoria motus corporum solidorum seu rigidorum in 1765, and it is incorporated into Euler's second law .
